Model |
Description |
Dimensions |
 |
| |
ST 1050 |
1.2mm 304 grade S-ST Top, S-ST LEGS |
1050x750x915H |
| |
ST 1050 |
1.2mm 304 grade S-ST Top, S-ST LEGS |
1650x750x915H |
| |
|
|
|
| |
|
|
|
| |
Extra |
| |
Drain holes added |
|
|
| |
Shelves: Stainless Steel or Galvanised |
|
| |
Castors for mobile units |
|
| |
|
| |
|
| |
|
 |
| |

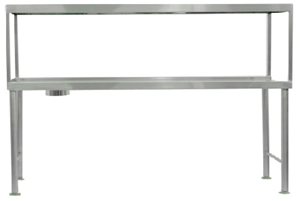

Dirties Tables |
 |
| |
 Welding legs from diameter 45mm grade 304 round tubing |
|
| |
Top has a 50mm wide *255mm high boxed edge to guide standard dish washing basket |
| |
Flow to adjoining equipment as per customer specification |
|
| |
Optional double dirties with second tier 600mm above table top |
|
| |
|
|
|
| |
Model |
Description |
Dimensions |
| |
S-DT 1120 |
Single dirties, 1.2mm 430 grade Stainless Steel |
1120 x 600 |
| |
S-DT 1650 |
Single dirties, 1.2mm 430 grade Stainless Steel |
1650 x 600 |
| |
S-DT 2100 |
Single dirties, 1.2mm 430 grade Stainless Steel |
2100 x 600 |
| |
|
|
|
| |
Model |
Description |
Dimensions |
|
| |
D-DT 1120 |
Double dirties, 1.2mm 430 grade Stainless Steel |
1120 x 600 |
|
| |
D-DT 1500 |
Double dirties, 1.2mm 430 grade Stainless Steel |
1500 x 600 |
|
| |
D-DT 1650 |
Double dirties, 1.2mm 430 grade Stainless Steel |
1650 x 600 |
|
| |
D-DT 1780 |
Double dirties, 1.2mm 430 grade Stainless Steel |
1780 x 600 |
|
| |
D-DT 2250 |
Double dirties, 1.2mm 430 grade Stainless Steel |
2250 x 600 |
|
